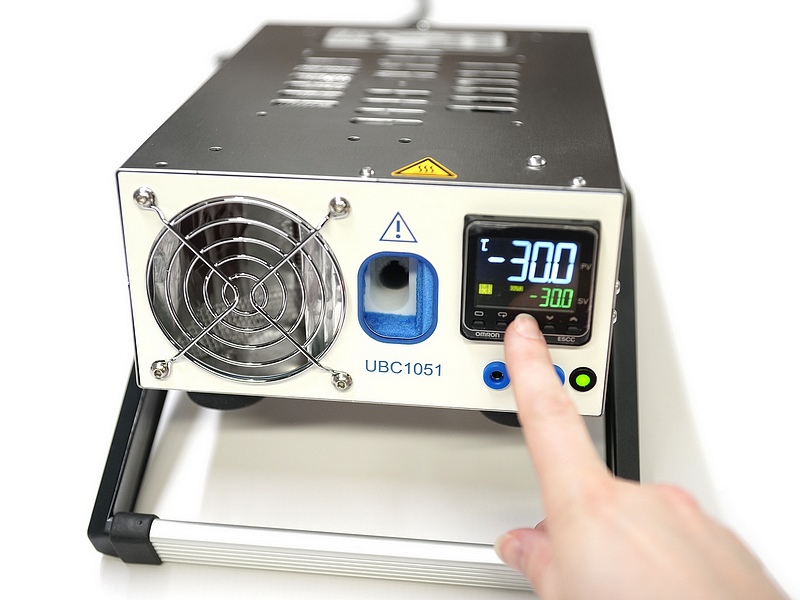

The UBC1051 is a compact, portable and fast sub-zero block calibrator designed for checking the accuracy of temperature sensors and thermometers. It uses solid-state peltiers to cool the block, down to 50 degrees below ambient. Its offers high accuracy and the versatility of interchange sleeves to cover a wide range of probe sizes. It has two 13mm clearance pockets in its block, these can be used with any of the four supplied sleeves, which each have a different size pocket, in order to accommodate different probe sizes.

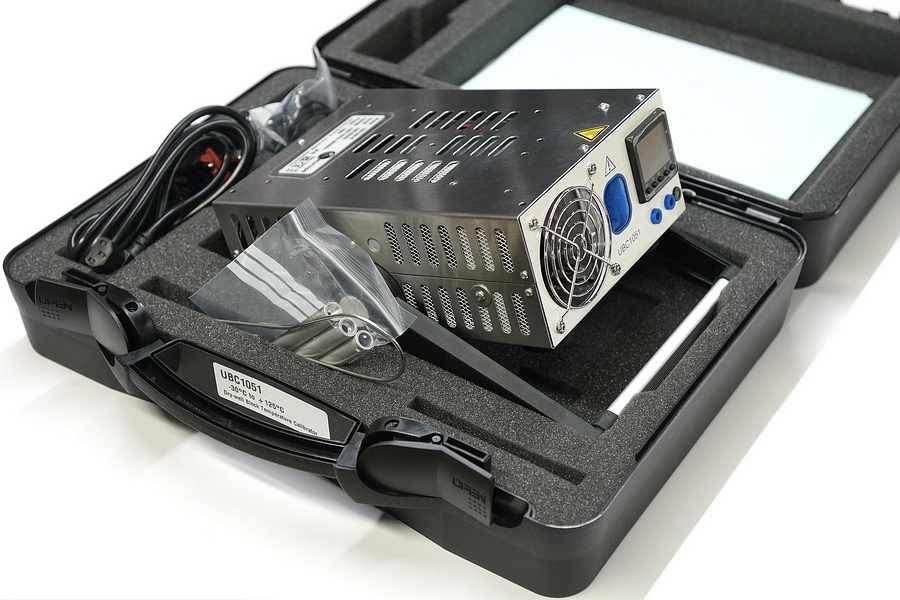

This Standard Kit version includes 4 different sleeve sizes to fit common probe sizes and a carry case. Additional sleeve sizes can also be ordered seperately.
UKAS (ISO 17025) calibration is optionally available.
Range: -30 to +125°C
(At an ambient temperature of 20°C. Cools to 50°C below ambient. Limited to -40°C to +125°C.)
Accuracy: ±0.25°C (see datasheet for full details)
Dimensions (WxHxD): 210 x 105 x 300mm
Power: 230Vac or 115Vac (automatic)
Sleeves/Inserts: 13mm UniSleeves sizes 3.2mm, 4.7mm, 6.5mm, 9.5mm included in this kit as standard.
Carry Case: Foam lined case included in this kit as standard.
TMS Europe Ltd is a UKAS accredited calibration laboratory No.0461, as defined in our Schedule of Accreditation. As a UK manufacturer we're a member of Made in Britain.
