Large Sleeves for UBC Block Calibrators

Large Sleeves for UBC Block Calibrators

TMS Stock Code:   BLKUNS-L#HT

For use in our UBC2010 block calibrator.
19.3mm OD, 146mm long.

Prices from:   £ 50

Size

Some models can be ordered online, or the whole range off-line.
All available options are shown below.
Size
Price (Ex VAT)Estimated
Availability
Estimated
Stock
L6HT, 6.8mm ID, 140mm well
50.00 1 - 2 days 11
L8HT, 8.4mm ID, 140mm well
70.00 1 - 2 days 5
L10HT, 10.5mm ID, 140mm well
50.00 1 - 2 days 12
L12HT, 12.3mm ID, 140mm well
70.00 1 - 2 days 2
L13HT, 13.3mm ID, 140mm well
50.00 1 - 2 days 11
L14HT, 14.3mm ID, 140mm well
50.00 1 - 2 days 12
L15HT, 15.0mm ID, 140mm well
70.00 1 - 2 days 1
L16HT, 16.5mm ID, 140mm well
70.00 1 - 2 days 4

Description and Specifications
Description and Specifications

Our Large Sleeves are for use in our UBC2010 block calibrator.

Outside Diameter (OD): 19.3mm
Total Length: 146mm

We manufacture a range of sleeve inserts for use in our UBC ranges of dry well block calibrators. These are normally available from stock. All our HT coded high temperature sleeves listed below are anodised aluminium suitable for use up to 500°C in TMS dry well block calibrators. Other sleeves with bespoke sizes may also be available on request, with single prices from £150 and typical lead time being 4-8 weeks.

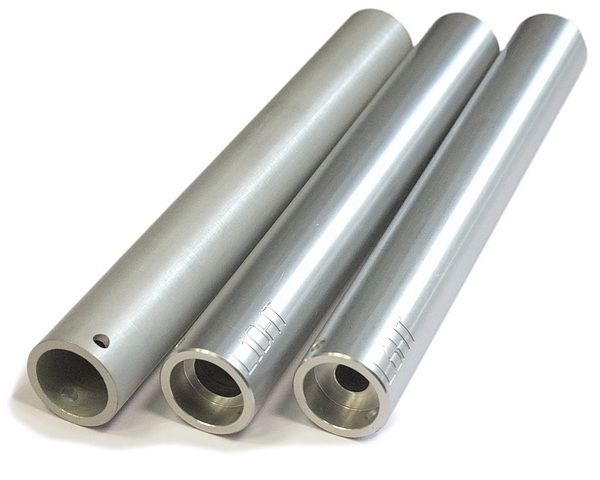

  TMS Block Calibrator Sleeves

Image representive of range.
