7.5% discount when ordering 2 or moreMany laboratory ovens, furnaces and incubators that are left unattended overnight are not fitted with over-temperature protection as standard. This is a potentially dangerous Health and Safety risk. Retrofitting by the manufacturer is expensive and takes the unit out of commission while the work is done.

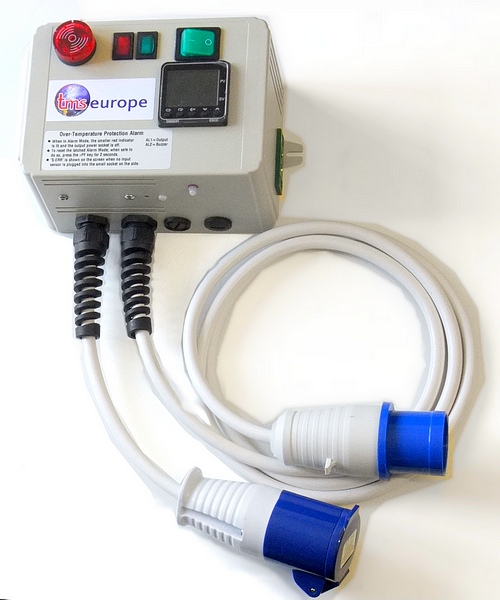

The answer is "InstCube". The wall-mounted unit, fitted with a Omron digital indicating controller and power relay, is a self-contained over-temperature control unit, which just plugs into your existing system. No wiring, no fuss.
Fitted with a 16 amp round blue plug for 230V, and a 16 amp controlled output socket in which to plug the furnace, oven or incubator to be protected, it comes complete with a Type K thermocouple (3mm diameter, 300mm long plus 2 metres of lead) to put into your process, covering the range 0 to 1100°C.
The unit has a loud audible buzzer alarm that can be configured independently of the output alarm or disable.
The controller displays the current temperature measured by the thermocouple to 0.1 or 1° resolution. The unit can be configured to 'latch' if thermocouple input temperature goes above the controller's alarm value (the alarm will need to be acknowledged by the user before power is restored to the connected load) or to restore the power once the thermocouple input temperature goes below the controller's alarm value.
- Type K 2-pin universal size (takes mini or standard plugs) socket input for thermocouples (preconfigured as -20.0 - 500.0°C)
- °C or °F display
- Audible Buzzer Alarm
- Red indicator shows when process is over-temperature
Sensor Input: Supplied with a Type K thermocouple.
Resolution: 0.1° (0.0 - 500.0°C) or 1° (-200 - 1300°C)
Output: 16A, 230Vac, Blue, 2P+E (IEC 60309) socket
Buzzer: 80dBA, Pulse
Supply Voltage: 230Vac ( ±10%), 50Hz. Via 16A, 230Vac, Blue, 2P+E (IEC 60309) plug.
Dimensions: 200 x 150 x 110mm (W x H x D)
IP Rating: IP30
Supplied Thermocouple: Type K Mineral Insulated Thermocouple, 3mm dia., 300mm long , 2m PVC lead with mini plug (
INSTCUBEMI-K-300-3.0)
Additional options and bespoke builds are available on request, please contact us for details.
